UK Solar Panel Installation Guide: Survey to Switch-On



A solar panel installation is more than placing modules on a roof. It is a small electrical-generation project

that must suit the property, the household’s electricity use and the local network. A well-planned system

can produce useful electricity for decades, but the quality of the result depends heavily on the survey,

design, installation and handover. Homeowners therefore benefit from understanding the complete

journey before accepting a proposal. This guide follows the process from the first conversation to the day

the system begins generating, while highlighting the questions that protect performance, safety and long

term value.

1. Start with the household, not the roof

The first step is to understand how and when the home uses electricity. Annual consumption matters, but

the timing of that consumption matters too. Solar panels normally generate most strongly during daylight

hours, so a household that runs appliances, works from home or charges an electric vehicle during the day

may use a larger share of its own generation. Evening-heavy households may still benefit, although load

shifting or battery storage can change the design. Gather at least twelve months of electricity bills where

possible. Note any planned changes such as an electric vehicle, heat pump, extension, home office or

growing family. These details help the designer avoid a system that is based only on today’s bill and

becomes unsuitable soon after installation.

2. What a proper site survey should examine

A remote estimate can be useful at the early stage, but a final design should be based on reliable property

information. The survey should consider roof orientation, pitch, usable area, shading, roof covering,

structural condition and safe access. Chimneys, dormers, vents and neighbouring buildings can reduce the

practical panel area. The surveyor should also inspect the proposed cable route, meter position, consumer

unit, earthing arrangements and a suitable location for the inverter and any battery. A careful survey SOLAR

reduces last-minute changes and makes the quotation more dependable. It also allows the installer to

identify whether roof repairs, an electrical upgrade or specialist access may be required before work begins.

3. Turning survey data into a system design

The design stage should match the number and layout of panels to the roof and expected electricity

demand. It should identify the panel model, inverter type, mounting system, estimated annual generation

and assumptions used in the calculation. A larger array is not automatically the best choice. The strongest

design balances available roof space, expected self-consumption, export, budget and future plans. Shaded

or multi-orientation roofs may require a different inverter arrangement from a simple unshaded roof.

Battery capacity should also be justified by expected surplus generation and evening demand rather than

added as a standard extra. Ask the solar installation company to explain why the proposed equipment and

system size suit your home.

4. Permissions, grid connection and paperwork

Many domestic rooftop systems can be installed without a full planning application, but exceptions may

apply to listed buildings, conservation areas and unusual installations. The installer should identify relevant

planning considerations and explain what remains the homeowner’s responsibility. The local Distribution

Network Operator may also need to be notified or consulted, depending on the system and connection

route. Good installers manage the technical network process and keep the customer informed. The

contract should clearly state who handles each document, what certificates will be supplied and when.

Paperwork is not an afterthought: it supports safety, future property sales, warranty claims and access to

eligible export arrangements.

5. Preparing the property before installation day

Before the team arrives, confirm access, parking, working hours and where equipment can be stored safely.

Clear loft areas or cupboards that form part of the cable route, and move vehicles away from the scaffold

area. Ask whether electricity will need to be switched off and for approximately how long. Pets and children

should be kept away from work zones. The installer should explain how the roof will be accessed and how

weather delays are handled. If roof repairs or tree work were identified during the survey, complete them

before installation. Good preparation prevents avoidable disruption and gives the installers a clear route to

complete the job safely.

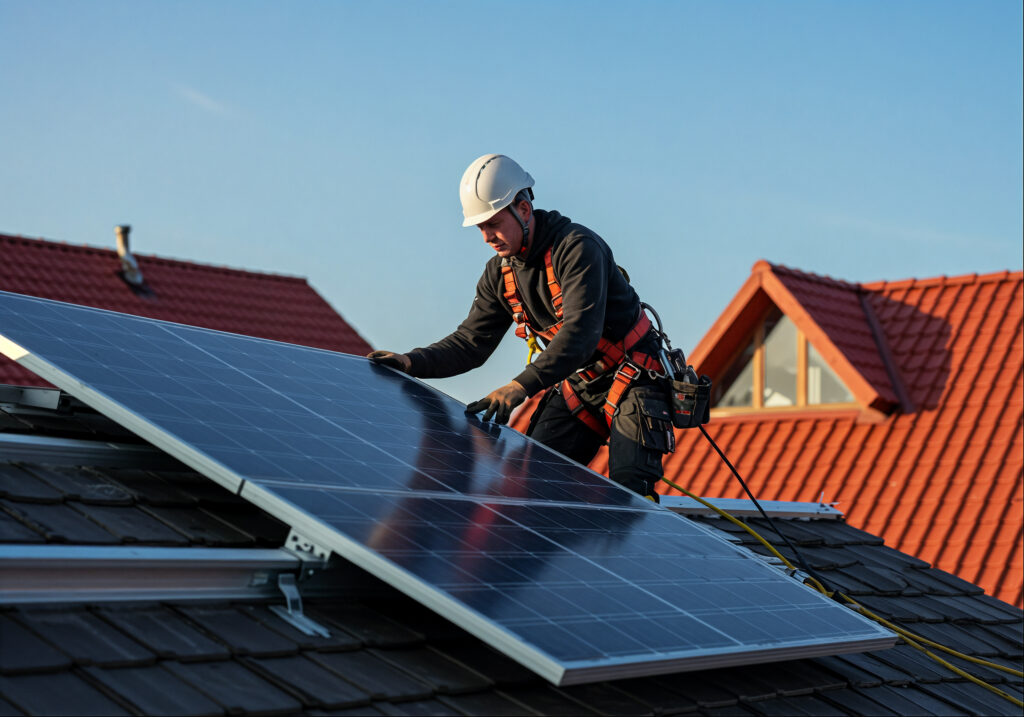

6. What happens during the physical installation

The sequence varies by property, but the work normally begins with safe access and roof preparation. The

team installs roof anchors or another approved mounting method, fixes rails, positions the panels and

makes the direct-current connections. Cables are routed to the inverter, which converts the panels’ direct-

current output into alternating current that the home can use. The inverter is then connected through the

required protective equipment to the consumer side of the electrical system. If a battery is included, it is

installed in an agreed, suitable location and integrated according to the design. The team should protect

the weatherproofing of the roof, support cables correctly and leave visible work neat and secure.

7. Testing, commissioning and switch-on

A system should not simply be connected and left running. The installer must test the electrical installation,

verify protective measures, check inverter operation and confirm that monitoring is reporting correctly.

Commissioning records should correspond with the installed equipment. The homeowner should be shown

the main isolators, the inverter display or app and the normal operating indicators. Ask what to do if the

system reports an error and who provides first-line support. Monitoring is useful, but it does not replace

formal commissioning. A clear handover helps the owner recognise ordinary seasonal variation without

overlooking a genuine fault.

8. Documents to receive at handover

The handover pack should include the contract and final specification, warranties, electrical certification,

commissioning information, equipment manuals and any scheme certificates promised in the quotation. It

should also include the array layout, shutdown instructions and contact details for support. Record product

serial numbers and keep digital copies of all documents. Where an MCS-certified installation has been

contracted, the relevant MCS certificate should be issued after commissioning. Confirm that the paperwork

describes the equipment actually fitted, particularly if any product substitution was agreed. Complete

documentation protects the homeowner and makes future maintenance, export applications or a house

sale easier.

9. The first weeks after installation

Generation will vary with daylight, weather and season, so avoid judging the system from one cloudy week.

Instead, check that the monitoring platform records daily generation and that there are no persistent

warnings. Start moving flexible electricity use into daylight hours: run dishwashers, washing machines or

vehicle charging when the array is producing, provided this is safe and convenient. Owners with batteries

should learn the operating mode and understand reserve settings, time-of-use charging and export

behaviour. Compare performance over sensible periods and contact the installer if generation stops

unexpectedly or the monitoring repeatedly loses data.

10. Questions worth asking before you sign

Ask who will conduct the survey, who will carry out the electrical work and whether subcontractors are

involved. Request the exact product models, warranties and estimated generation. Confirm whether

scaffolding, bird protection, monitoring, network applications, certification and waste removal are included.

Ask what could change the price after survey and how variations are approved. Establish the deposit,

payment stages, cancellation rights and expected installation window. Finally, ask how faults and warranty

claims are handled after completion. Clear answers are a stronger sign of a professional solar installation

company than aggressive sales language or an unusually quick discount.

Conclusion

A successful solar panel installation begins with evidence, not pressure. The best process connects

household energy use, a detailed survey, a justified design, safe workmanship and complete handover

documentation. Homeowners who understand these stages can compare proposals more intelligently and

recognise when important details are missing. Solar Dream can assess the property, discuss current and

future energy needs and prepare a tailored solar installation proposal. A considered design may take more

care at the beginning, but it gives the system a better foundation for reliable generation and long-term savings.
